- Interconnects Connectors Pin headers
-
-

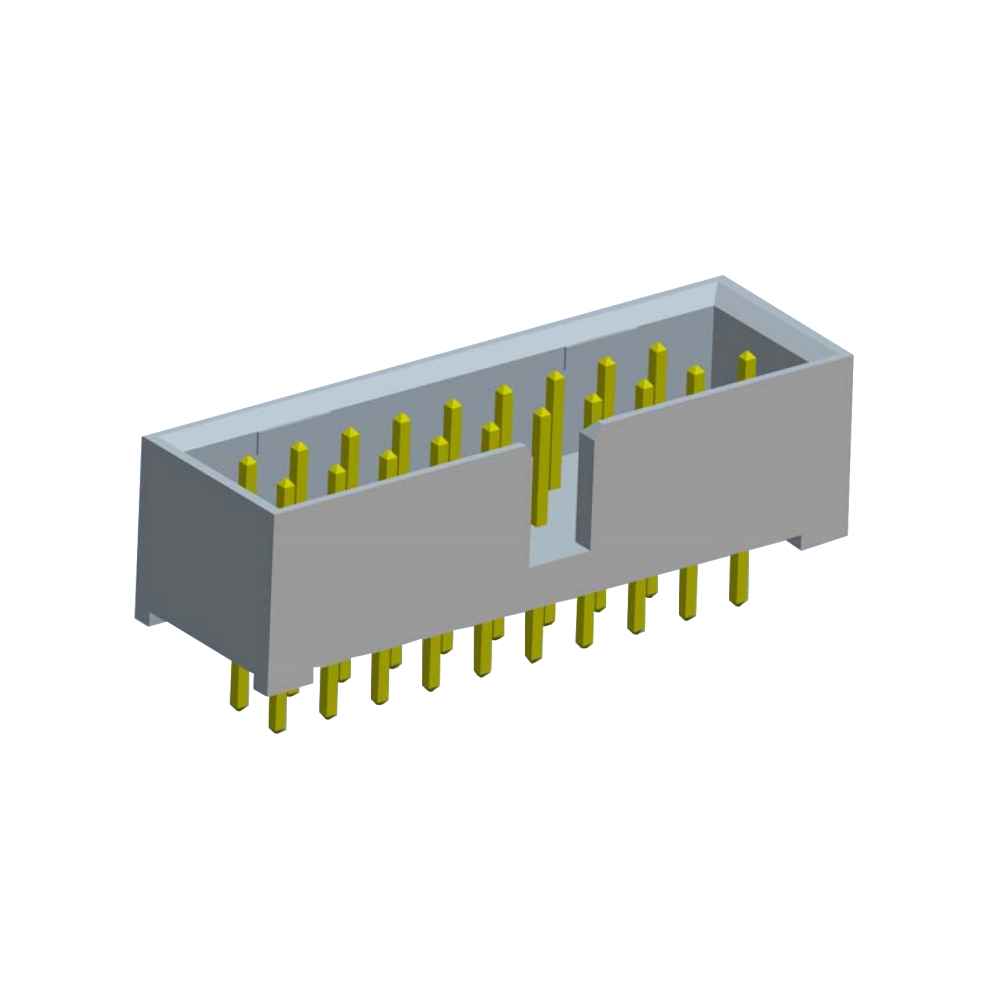

2010 Series
Description
SPECIFICATIONS:
MATERIAL:
- INSULATOR : THERMOPLASTIC WITH 30% G/F, UL 94V-0.
- CONTACT : BRASS.
ELECTRICAL:
- CURRENT RATING : 1 .5AMP.
- WITHSTANDING VOLTAGE : AC 500V
- INSULATOR RESISTANCE : 1000 MEGOHMS MIN.
- CONTACT RESISTANCE : 20 MILLIOHMS MAX.
- OPERATING TEMPERATURE : -40°C ~ +105°C
