- Interconnects Connectors Board To Board connectors
-
-

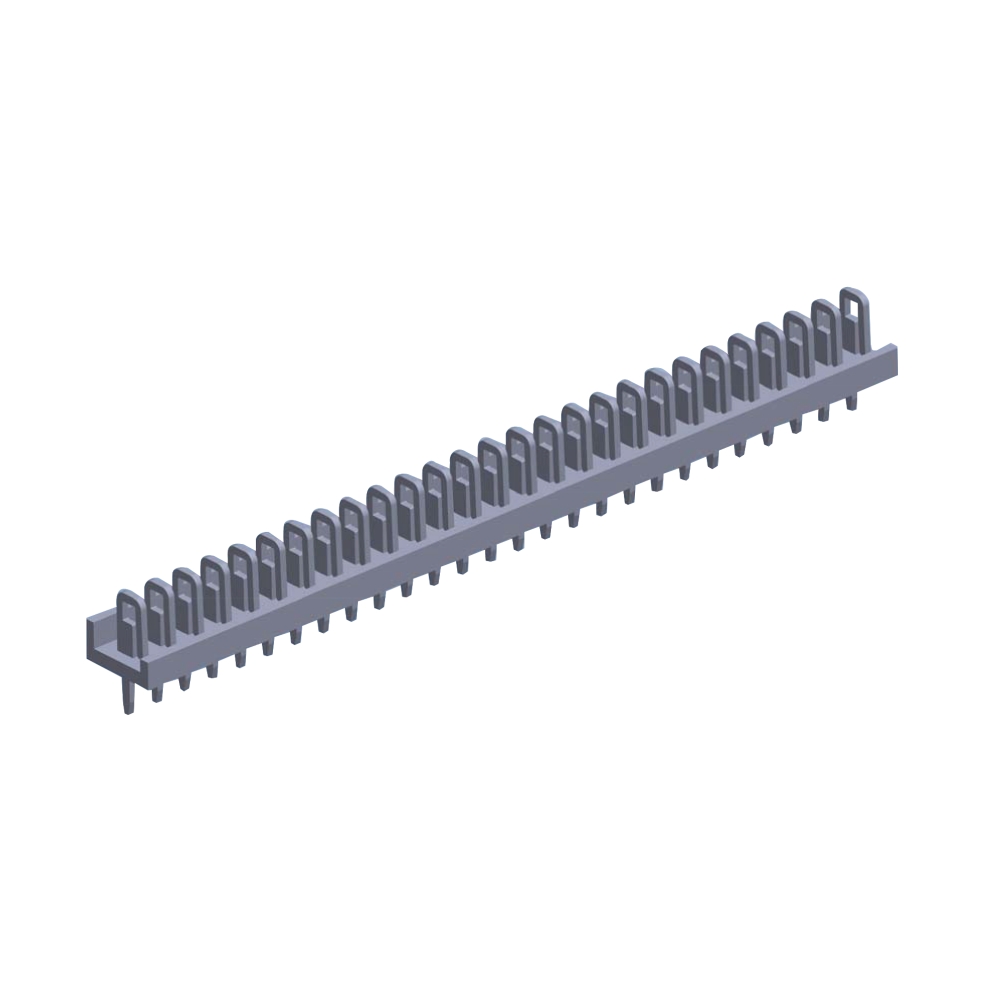

2001 Series
Description
SPECIFICATIONS:
MATERIAL:
- INSULATOR : THERMOPLASTIC WITH 30% G/F, UL 94V-0.
- CONTACT : PHOSPHOR BRONZE
ELECTRICAL:
- CURRENT RATING : 1.0 AMP.
- INSULATOR RESISTANCE : 500 MEGOHMS MIN. AT 500V AC.
- CONTACT RESISTANCE : 20 MILLIOHMS MAX.
- OPERATING TEMPERATURE : -25°C ~ +85°C
