- Interconnects Plugs, Jacks & Sockets Connector terminals
-
-
KD-1138,KD-1139 series
Disconnectable crimp style connectors
Description
Specification
Voltage rating: 250V
Current rating: 5A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m
max.
After environmental
testing/20m max
| Type | Type | Type |
| Housing | Wafer | Terminal |
| Part No. | Part No. | Part No. |

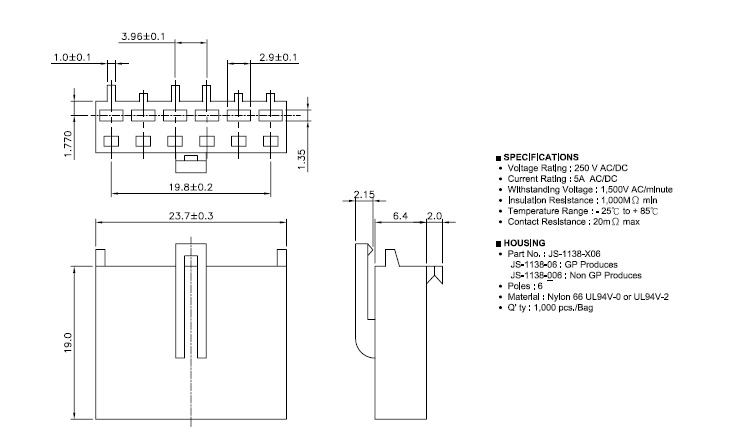

| JS-1138-06 | JS-1139,JS-1139-xxW0/P(Without Post) | JS-5001-T, JS-5001-TA(3 Contacts) |
| Description | Description | Description |
| Poles:6 Material: Nylon 66 UL 94V-0or UL94V-0 Q'ty: 1,000 pcs/Bag |
Poles: 6,12 Material: Contact : Brass, Tin plated Base : Nylon 66 UL94V-2 Q'ty: 1,000 pcs/bag |
Applicable wires: AWG# 18~24 Material: Brass Finish:Tin plated Gold plated
Thickness:0.25 mm
Q'ty: JS-5001-T 6,000 pcs/Reel |
